Machinery

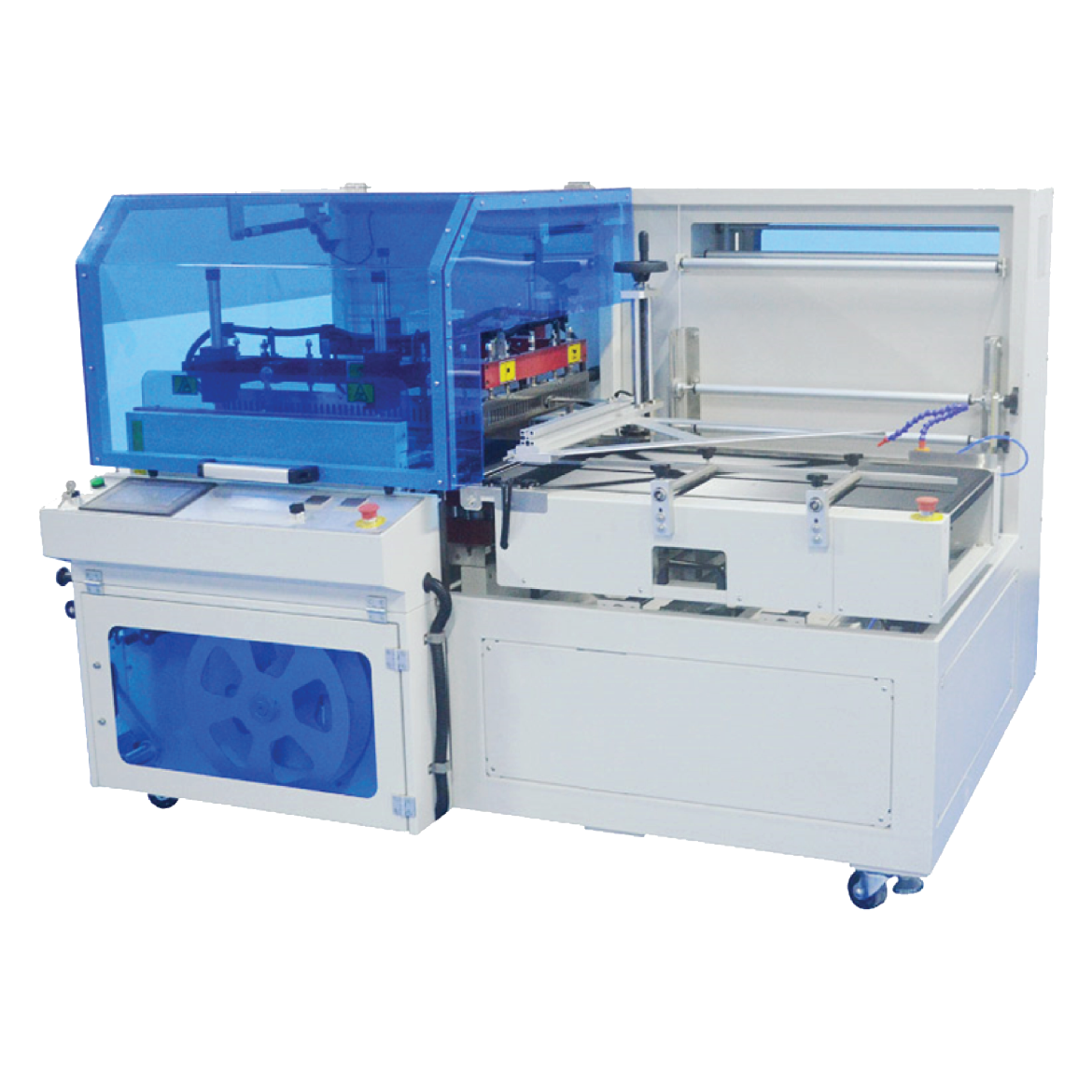

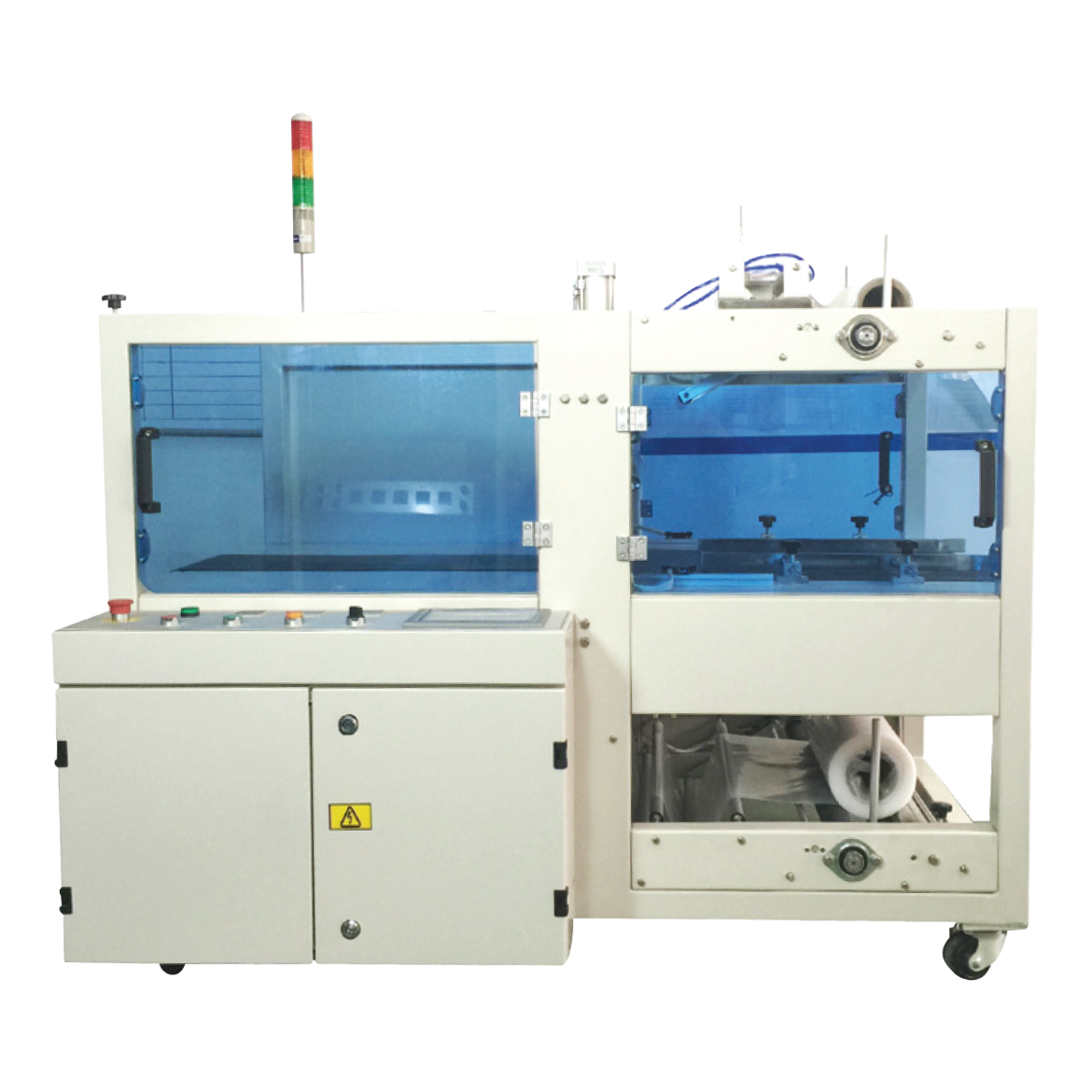

L-SHAPE SCISSORS TYPE AUTOMATIC SEALING MACHINE
THE LARGEST MACHINE CAPACITY ~ 30PCS/MIN
| Model No | SP-A5645 |
|---|---|
| Voltage | 220V / 1PH / 50HZ |
| Power | 3.0KW |
| Cylinder Air Consumption | 80psi, 6kg/cm² |
- Scissors sealing designed, sealing action is stable to provide excellent stability and durability.
- It can reduce the sealing line folded to get a perfect sealing and cutting effect
- It can be equipped with automatic feeding system.
- With widely application for all kinds of products.
- Easy to change the product sizes or models.
- Suitable for different types of shrink films.
- Affordable, the best choice for fully automatic sealing machine.
- With safeguard systems and alarm devices.
- The sealing system is smoother, with stable sealing action and sealing joint line is even and orderly.
- Simple operation control.
- Automatic feeding system, length can be automatically adjusted by electric eye "Sensor" detected.
- Punching perforation device can be flexible adjusted, the pinwheel brush system can be used permanently.
OVERVIEW
The sealing position has fixed with the anti-pressure sensor system and portable perforating device. In flexible adjustment and strong durability.
Specially for commercial products, all kind of foods, cosmetics, candy, books, photos, gift boxes, carton boxes and etc.

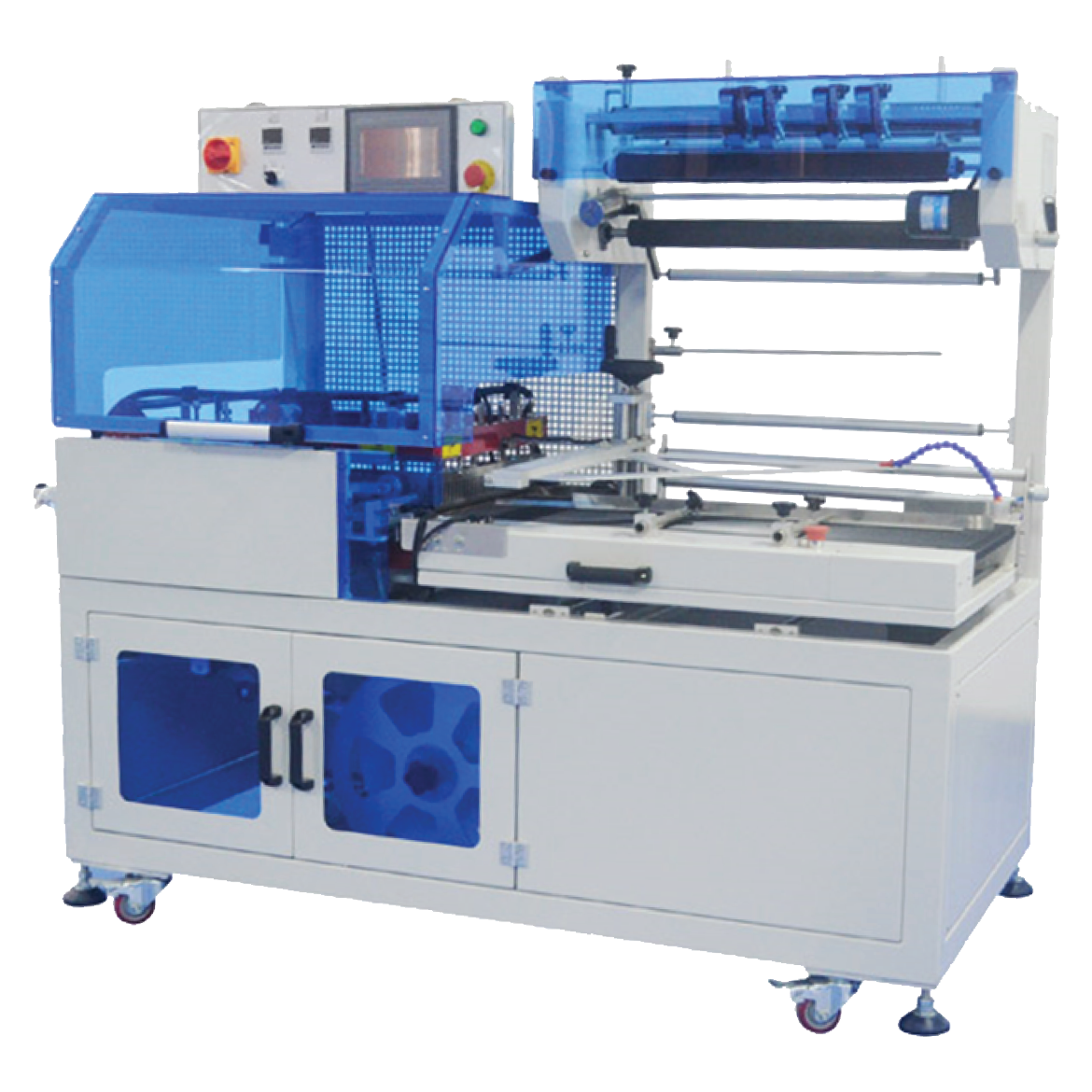

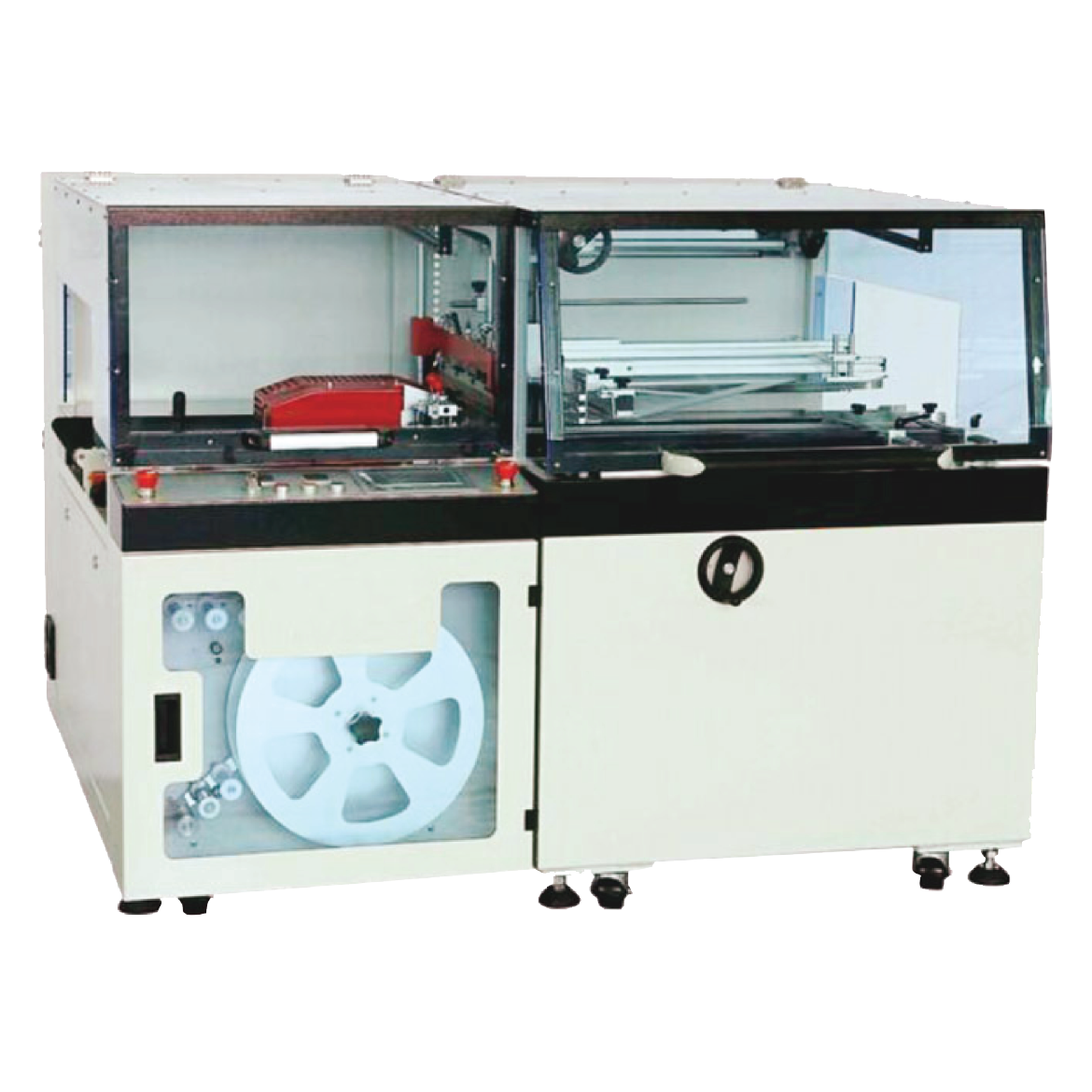

L-SHAPE VERTICAL AUTOMATIC SEALING MACHINE
- Vertical sealing designed, sealing action is stable to provide excellent stability and durability.
- It can reduce the sealing line folded to get a perfect sealing and cutting effect.
- It can be equipped with automatic feeding system.
- With horizontal and vertical two groups of electric eyes the machine can be adapted to different thickness of the products.
- Easy to change the product sizes or models.
- Suitable for different types of shrink films.
- It can be equipped with extra contact device and to pack smaller products.
- Relative to the traditional machine, vertical sealing machine has a major breakthrough that sealing path can be automatically adjusted according to the thickness of the products, improve the production efficiency.
- Fastest speed up to 40 packs per minute.
- For package those higher or lower products, it can even highlight the advantages. More satisfying effect of packaging to the users.
OVERVIEW
The conveyor width can be easily adjusted without any tools, which can be quickly changed to the required size.
Uniquely designed pull film part can be widely applicable to different types of shrink films.
Specially for commercial products, all kind of foods, cosmetics, candy, books, photos, phone sim cards.
| Model No | SP-A4030 | SP-A6352 | SP-A9070 |
|---|---|---|---|
| Voltage | 220V / 1PH / 50HZ | 220V / 1PH / 50HZ | 220V / 1PH / 50HZ |
| Power | 2.5KW | 3.0KW | 4.0KW |
| Cylinder Air Consumption | 80psi, 6kg/cm² | 80psi, 6kg/cm² | 80psi, 6kg/cm² |
| Sealing Bar Dimension ( L x W ) |
400mmL x 300mmW | 630mmL x 520mmW | 900mmL x 700mmW |
| Min Packing Size ( L x W x H ) |
60mmL x 40mmW x 2mmH | 80mmL x 50mmW x 2mmH | 100mmL x 80mmW x 2mmH |
| Max Machine Size ( L x W x H ) |
350mmL x 250mmW x 80mmH | 550mmL x 450mmW x 180mmH | 850mmL x 650mmW x 180mmH |
| Machine Size ( L x W x H ) |
1300mmL x 1080mmW x 1230mmH | 2000mmL x 1450mmW x 1315mmH | 2650mmL x 1680mmW x 1315mmH |

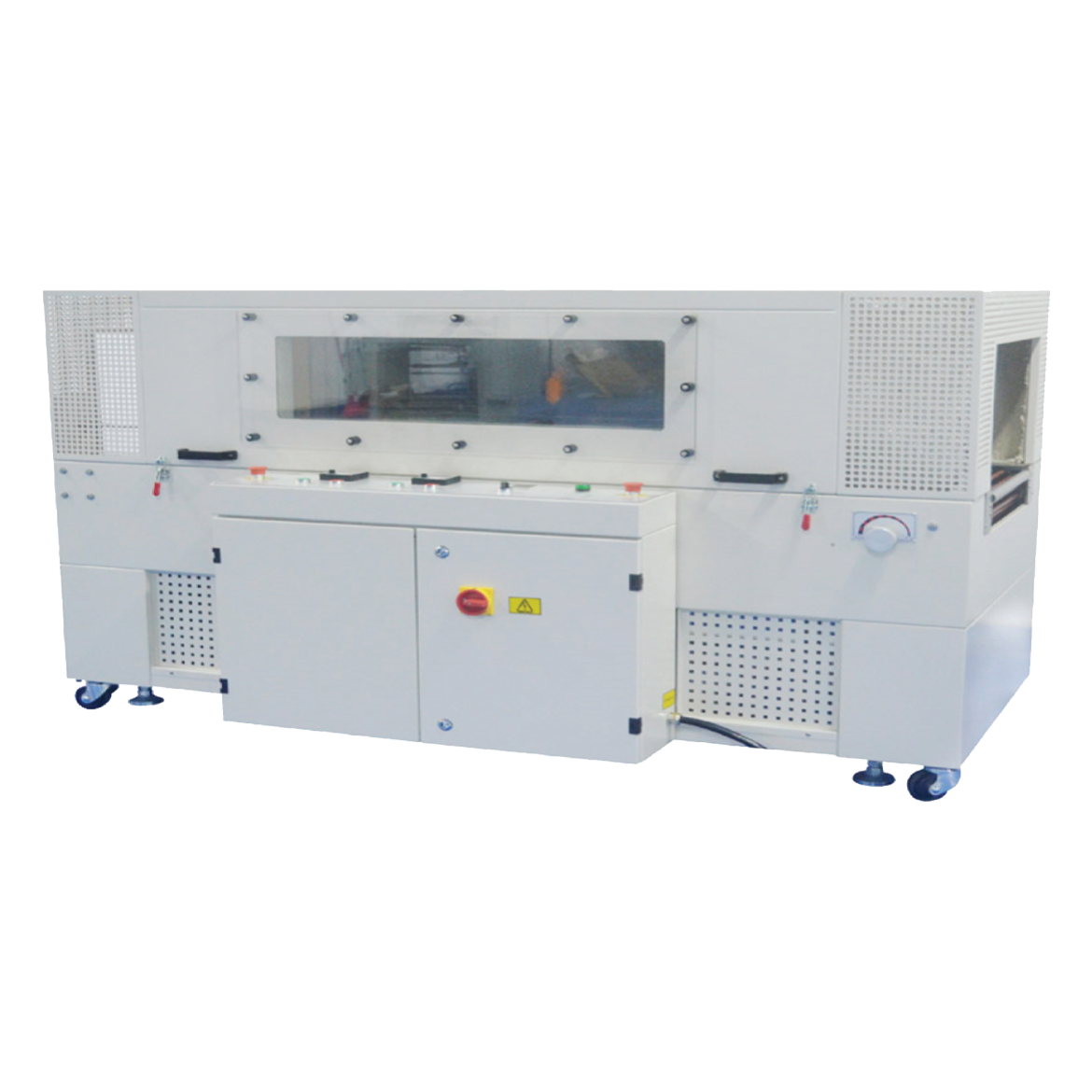

AUTOMATIC HIGH SPEED SIDE SEALING MACHINE
MACHINE CAPACITY ~ 55PCS/MIN
- There is no limit about the length of the packaging products.
- The sealing line can be adjusted in the middle of the product according to what you need.
- Perfect sealing effect is reached.
- The productivity around 55 pcs/minutes depends on the products and parameter setting conditions.
- The conveyor speed is adjustable according to different product needs.
- Punching perforation device can be flexibly adjusted and the pin wheel brush is permanently use.
OVERVIEW
Especially for large products such as photo frames, furniture, aluminium products, kitchen utensils, bottle beverage etc.
| Model No | SP-BJ400 | SP-B500 | SP-B800 | SP-B1100 |
|---|---|---|---|---|
| Voltage | 220V / 1PH / 50HZ | 220V / 1PH / 50HZ | 220V / 1PH / 50HZ | 220V / 1PH / 50HZ |
| Power | 3.0KW | 3.0KW | 3.5KW | 4.5KW |
| Cylinder Air Consumption | 80psi, 6kg/cm² | 80psi, 6kg/cm² | 80psi, 6kg/cm² | 80psi, 6kg/cm² |
| End Sealing Bar | 400mm | 500mm | 800mm | 1100mm |
| Min Packing Size ( L x W x H ) |
150mmL x 60mmW x 5mmH | 200mmL x 60mmW x 5mmH | 200mmL x 100mmW x 2mmH | 300mmL x 300mmW x 2mmH |
| Max Machine Size ( L x W x H ) |
a mmL x 350mm W x 100mmH | a mmL x 450mm W x 120mmH | a mmL x 650mm W x 120mmH | a mmL x 1000mm W x 120mmH |
| Conveyor Speed (m/min) |
20 m/min | 30 m/min | 30 m/min | 30 m/min |
| Machine Size | 1780mmL x 985mmW x 1550mmH | 1630mmL x 1155mmW x 1590mmH | 1820mmL x 1605mmW x 1668mmH | 2100mmL x 1605mmW x 1800mmH |
HIGH EFFICIENCY ENERGY SAVING SHRINK TUNNEL
| Model No | SP-S450 | SP-S550 | SP-S650 | SP-S800 |
|---|---|---|---|---|
| Voltage | 380V / 3PH | 380V / 3PH | 380V / 3PH | 380V / 3PH |
| Power | 8.0KW | 14.0KW | 16.0KW | 18.0KW |
| Conveyor Speed ( m/min ) |
35m/min | 35m/min | 35m/min | 35m/min |
| Shrink Tunnel Size ( L x W x H ) |
1000mmL x 440mmW x 280mmH | 1500mmL x 540mmW x 350mmH | 1700mmL x 630mmW x 350mmH | 1700mmL x 790mmW x 280mmH |
| Products Size ( L x W x H ) |
L x 360mmW x 230mmH | L x 430mmW x 280mmH | L x 500mmW x 280mmH | L x 650mmW x 230mmH |
| Machine Size ( L x W x H ) |
1300mmL x 920mmW x 1130mmH | 2000mmL x 1110mmW x 1230mmH | 2200mmL x 1110mmW x 1230mmH | 2200mmL x 1260mmW x 1160mmH |

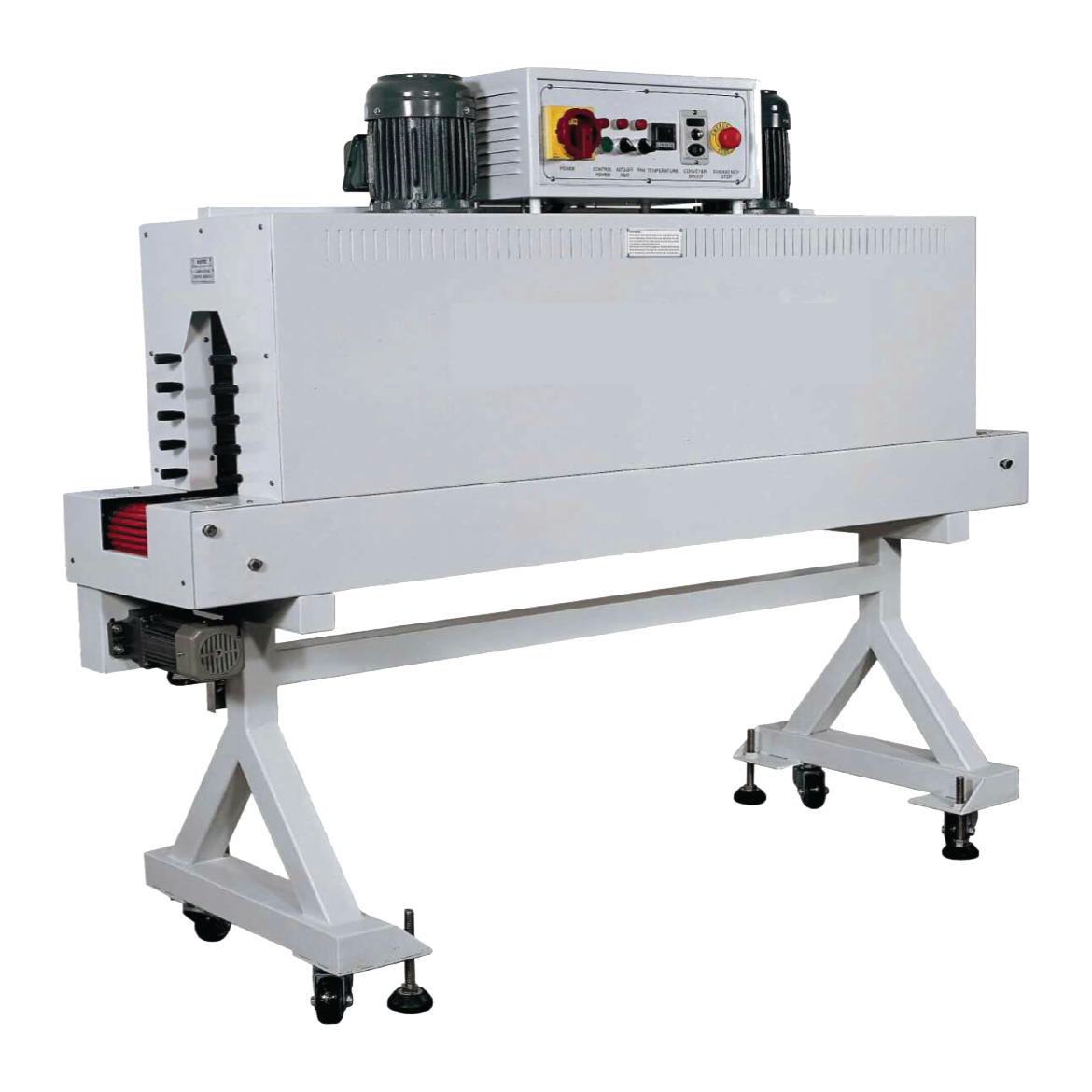

ELECTRICAL SHRINK TUNNEL
Remarks:
This shrink Tunnel is suitable for PVC and PET shrink Label
| Model No | SP-300/1800 |
|---|---|
| Machine Dimension ( L x W x H ) ( mm ) |
1800mmL x 600 mmW x 1560mmH |
| Tunnel Dimension ( L x W x H ) ( mm ) |
1500mmL x 120 mmW x 300mmH |
| Max Packing Size ( Dia x H ) ( mm ) |
100mmDia x 280mmH |
| Packing Speed ( pcs/h ) |
800 to 1200 |
| Net Weight ( kg ) |
210 |
| Power ( kg ) |
15 |
| Power Supply | 3PH 415V , 50 HZ |
| Applicable Film | PVC / PET |
| Machine Origin | Super Poly China |

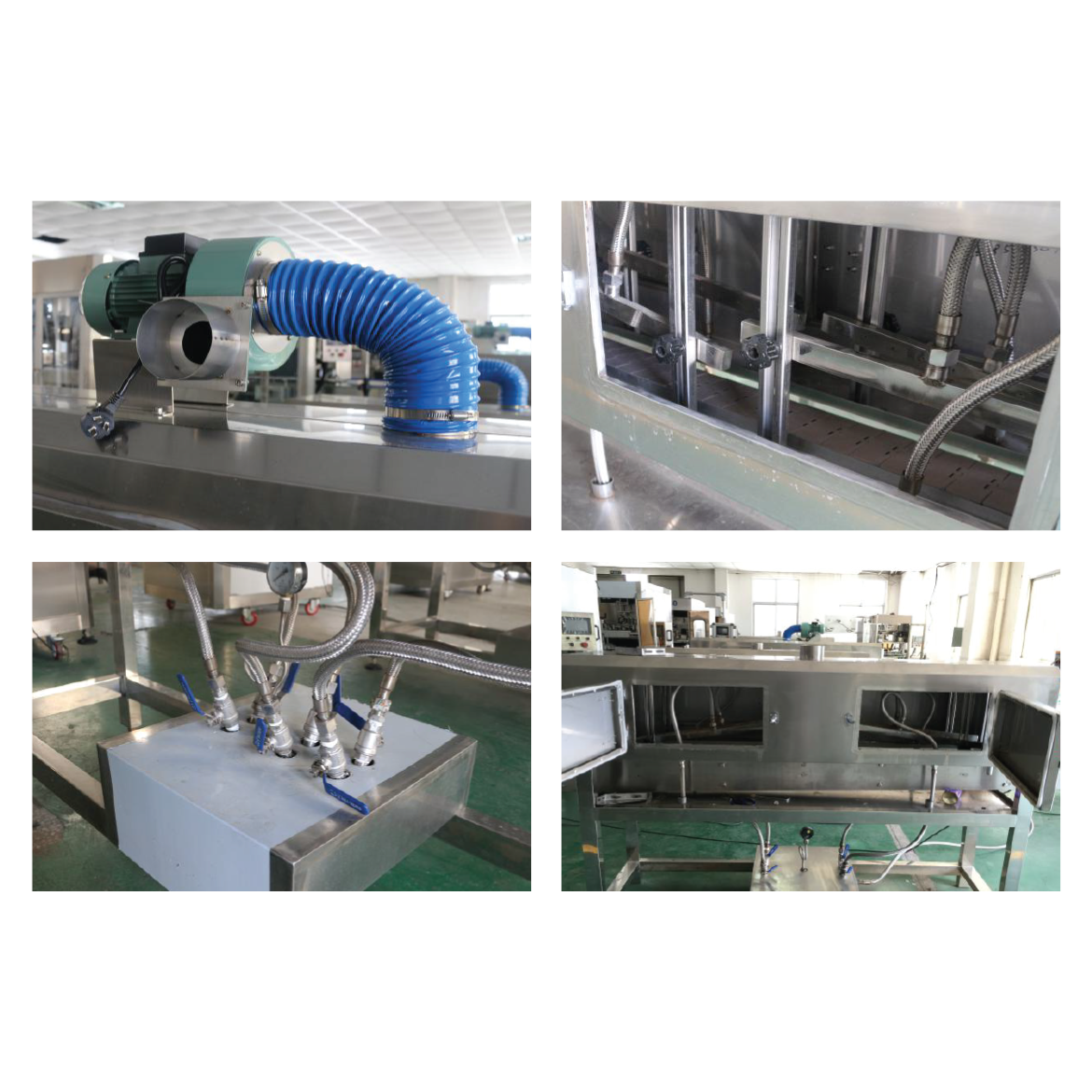

SLEEVE APPLICATOR STEAM TUNNEL

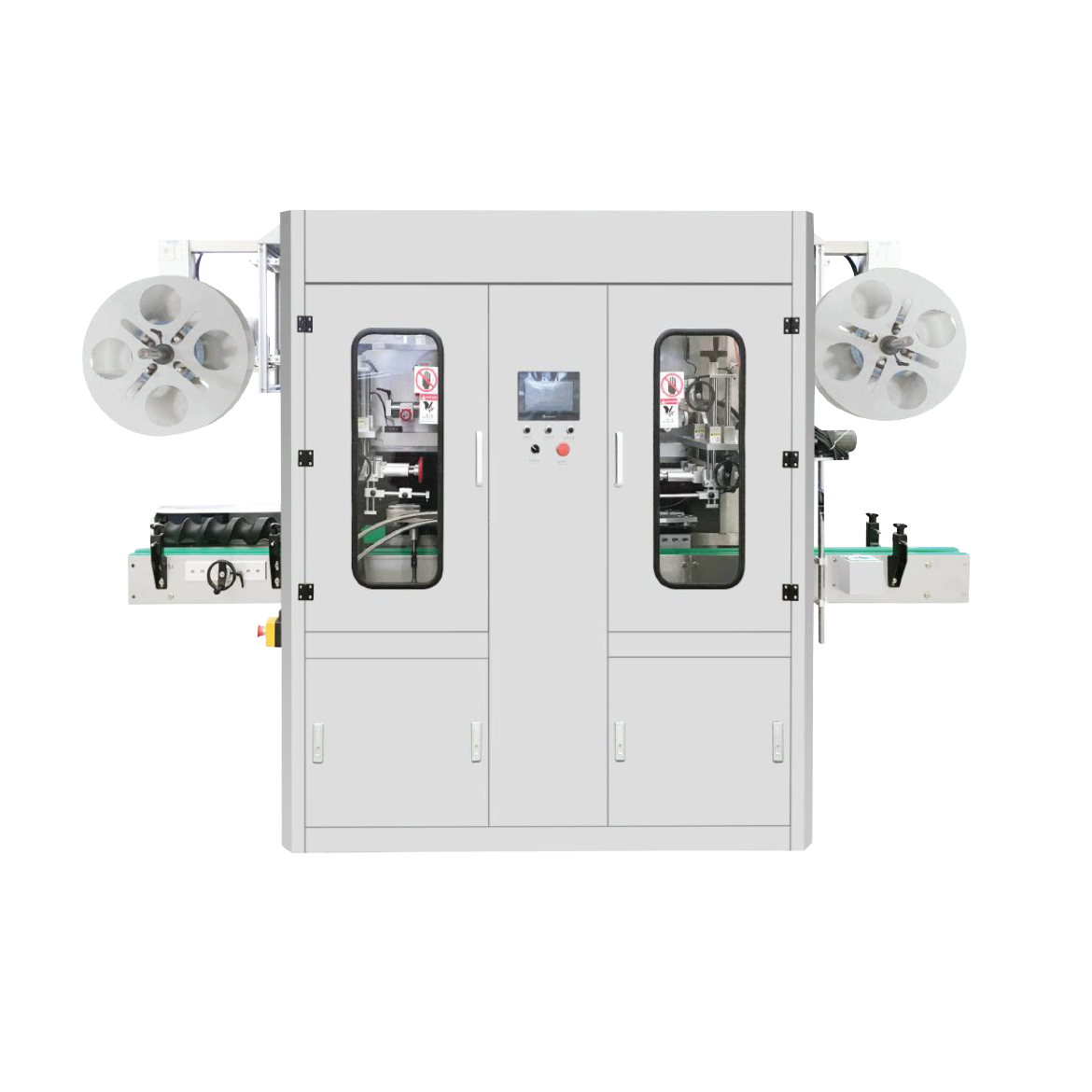

Double Head Sleeve Applicator Machine
| Item | Technical Data |
|---|---|
| Import Power | 6.0KW |
| Import Voltage | 3,380 / 220 VAC |
| Dimension of Host Machine ( mm ) |
3200mmL x 1200mmW x 2070mmH |
| Applicable Diameter Container ( mm ) |
28mm ~ 125 mm |
| Applicable Label Length ( mm ) |
30 ~ 250 mm |
| Applicable Thickness Label ( mm ) |
0.03 ~ 0.13 mm |
| Applicable Inner Diameter of Paper Tube |
5" ~ 10" |
Steam Tunnel Machine
| Item | Technical Data |
|---|---|
| Input Voltage Supply of Blower | 1,220 VAC |
| Input Voltage Supply of Steam Generator | 380V / 50 Hz |
| Working Pressure | <= 0.1 Mpa |
| Dimension of Shrink Tunnel | 1800mmL x 400mmW x 450 mmH |
| Weight | 150kg |

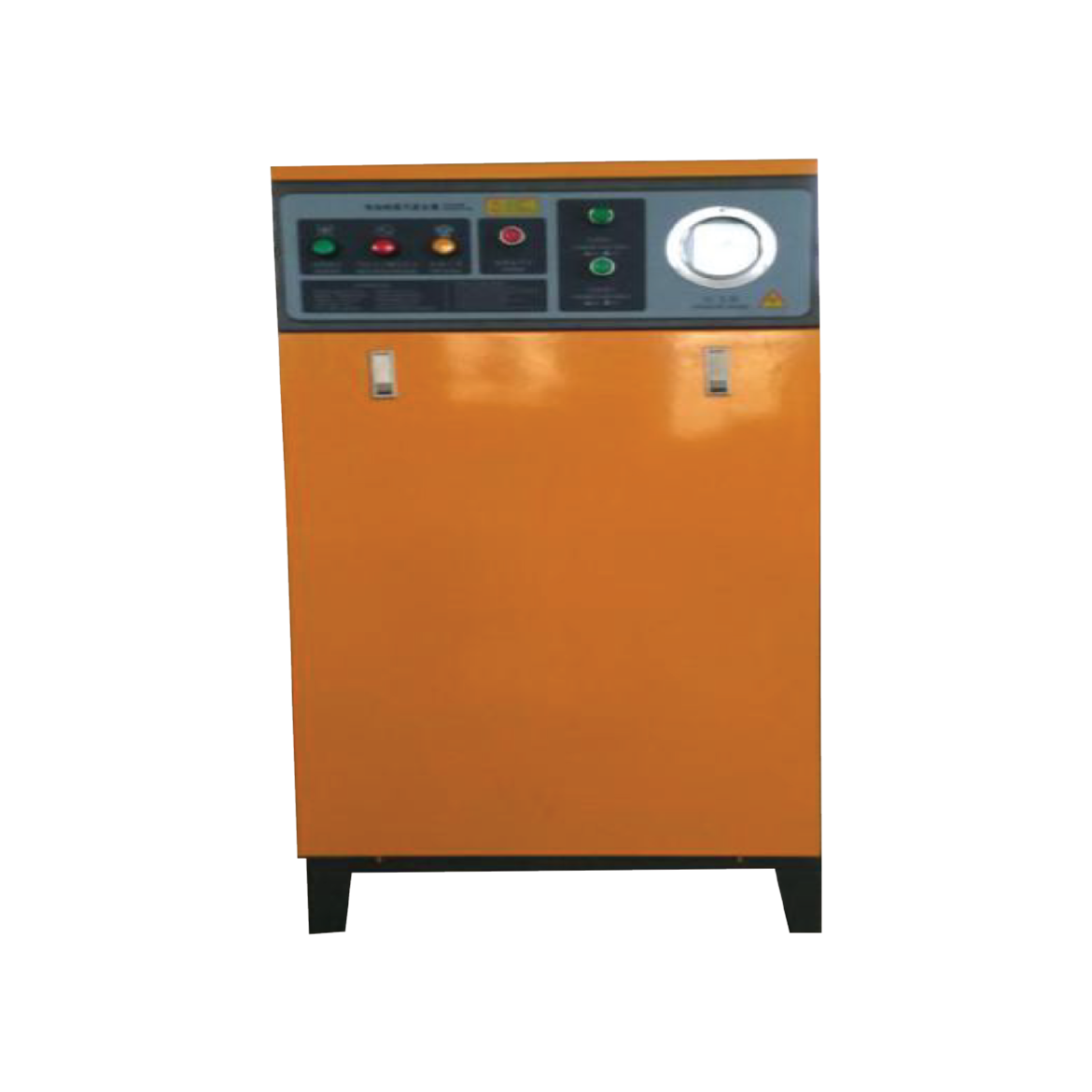

Steam-Generator
| Item | Technical Data |
|---|---|
| Input Power Supply | 3 Phases 380V / 220V |
| Input Power | 18KW |
| Steam Pressure | 0.4Mpa ~ 0.7Mpa |
| Water Tank Volume | 48L |
| Vapor Generation Value | 25.8Kg / h |
| External Dimension | 760mmL x 670mmW x 1360mmH |

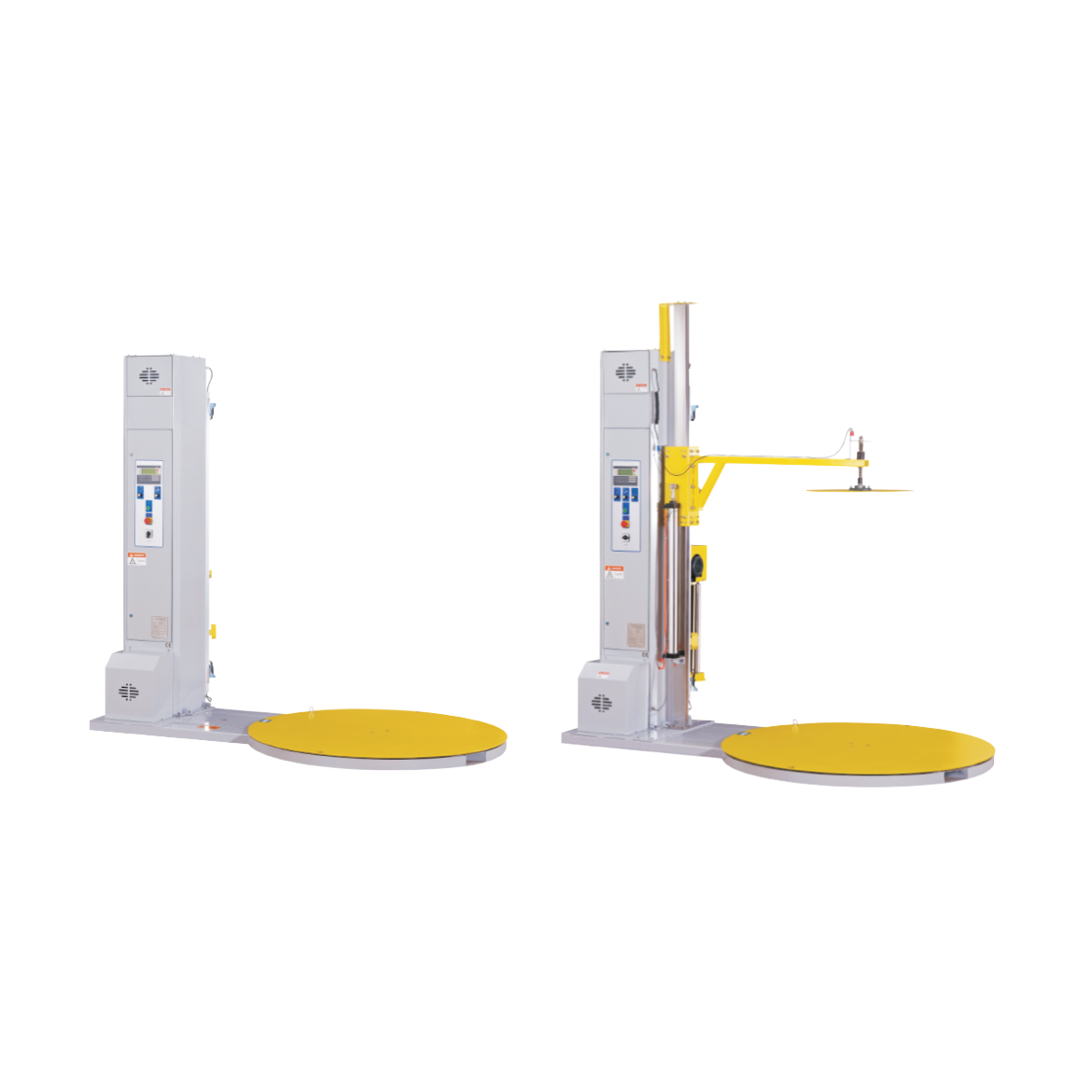

PALLET WRAPPER
SP-XT-4505-1 (Left) | SP-XT-4505-3 (Right)
| Model No | SP-XT-4505-1 | SP-XT-4505-3 |
|---|---|---|
| Turntable Diameter | 1500mm (1200 x 80mm ) |
1500mm (1200 x 80mm ) |
| Pallet Height | 700 - 2100mm | 700 - 2100mm |
| Pallet Weight | 2000KG | 2000KG |
| Turntable Height | 80mm | 80mm |
| Power Supply | 110V / 220V 50HZ / 60HZ 1 PHASE |
110V / 220V 50HZ / 60HZ 1 PHASE |
| Control System | PLC | PLC |
| Film Carriage | Brake Tension 150% | Per-stretch 250% |
| Turntable Speed | 0 - 12R/M | 0 - 12R/M |
| Net Weight | 400kg | 450kg |

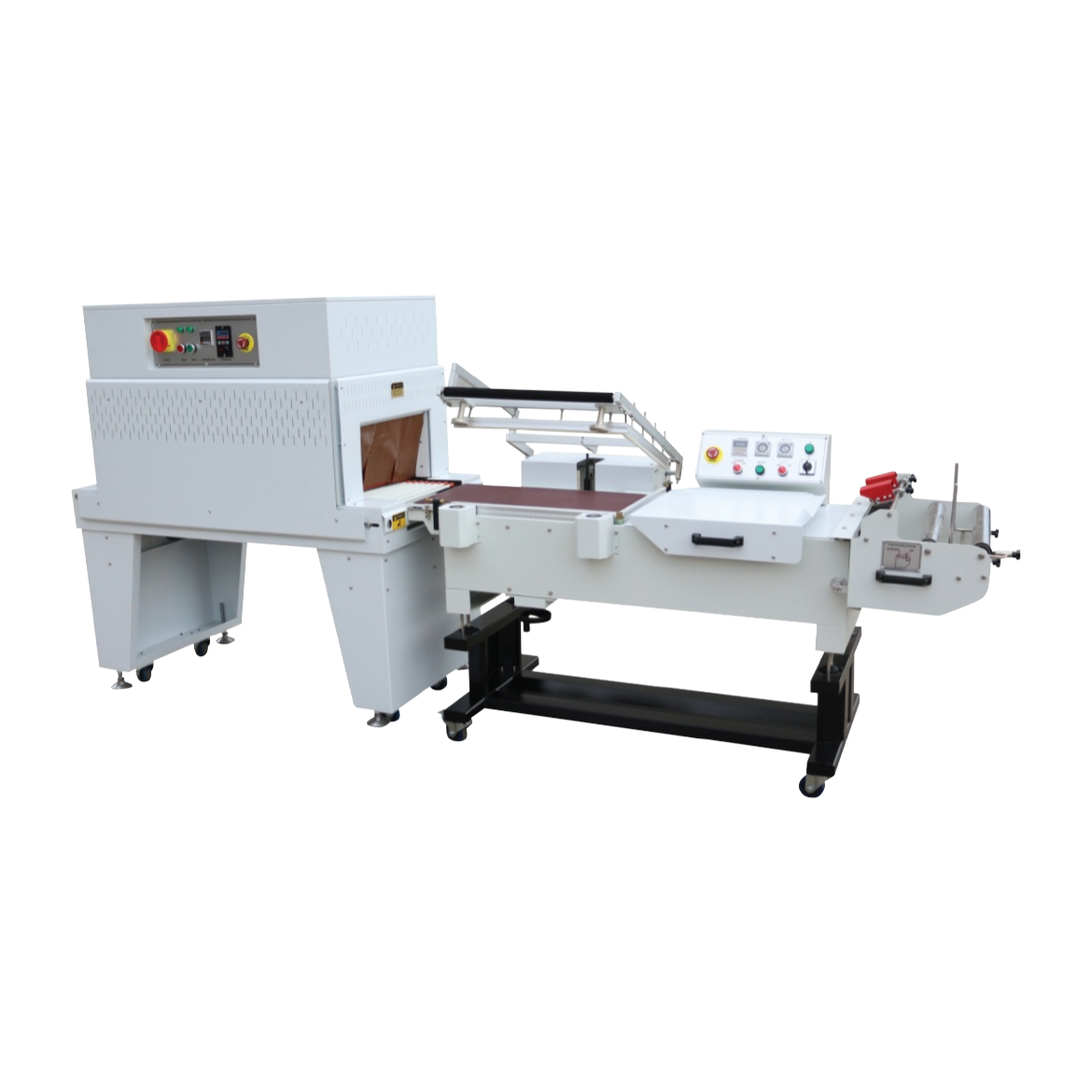

SEMI AUTOMATIC L - TYPE SEALER & SHRINK TUNNEL
| Model No | SPSF-20LG | SPSF-4525 |
|---|---|---|
| Pallet Height | 220v 1P 50Hz | 220v 1P 50Hz |
| Max. Packing Size ( L x W x H ) |
L+H<530mm W+<430mm H<200mm | 1000mmL x 300mmW x 200mmH |
| Tunnel Size ( L x W x H ) |
- | 1000mmL x 450mmW x 250mmH |
| Max. Loading Weight | 25kgs | 25kgs |
| Table Height | 750+25mm | 750+25mm |
| Packing Speed | 0-15m/min | 0-10m/min |
| Shrink Film | POF | POF , PVC |
| Machine Size ( L x W x H ) |
1730mmL x 790mmW x 980mmH | 1300mmL x 720mmW x 1500mmH |
| Package Size ( L x W x H ) |
1780mmL x 820mmW x 1120mmH | 1580mmL x 770mmW x 1105mmH |
| G./N. Weight | 145 / 125kgs | 235 / 215kgs |
SLEEVE TYPE AUTOMATIC SEALING MACHINE
- Touch screen designed, convenient operation.
- Precise and durability desgined, strong structure.
- The operation is convenient and easy to adjust.
- Bulk packaging to save packing cost.
- The conveyor length could be customized according to production needs.
- Suitable for bulk packaging, such as canned food, bottle beverages and adhesive tapes.
This can be saved the packing cost of cartons. The machine can be operated independently, also can be connected to other mechanical automatic production line to improve production efficiency.
| Model No | SP-X450 | SP-XZ650 | SP-X1800 |
|---|---|---|---|
| Voltage | 220V / 1PH / 50HZ | 220V / 1PH / 50HZ | 220V / 1PH / 50HZ |
| Power | 2.5KW | 3.0KW | 5.0KW |
| Cylinder Air Consumption | 80psi, 6kg/cm² | 80psi, 6kg/cm² | 80psi, 6kg/cm² |
| Min Packing Size ( L x W x H ) |
360mmL x 90mmW x 90mmH | 550mmL x 40mmW x 40mmH | - |
| Max Packing Size ( L x W x H ) |
360mmL x 130mmW x 130mmH | 360mmL x 130mmW x 130mmH | 1200mmL x 350mmW x 350mmH |
| Conveyor speed ( m/min ) |
20 m/min | 20 m/min | 10 m/min |
| Machine Size ( L x W x H ) |
1865mmL x 1170mmW x 1607mmH | 2025mmL x 1085mmW x 1490mmH | 2700mmL x 1800mmW x 2030mmH |
VARIOUS TYPE OF PE SHRINK SYSTEM

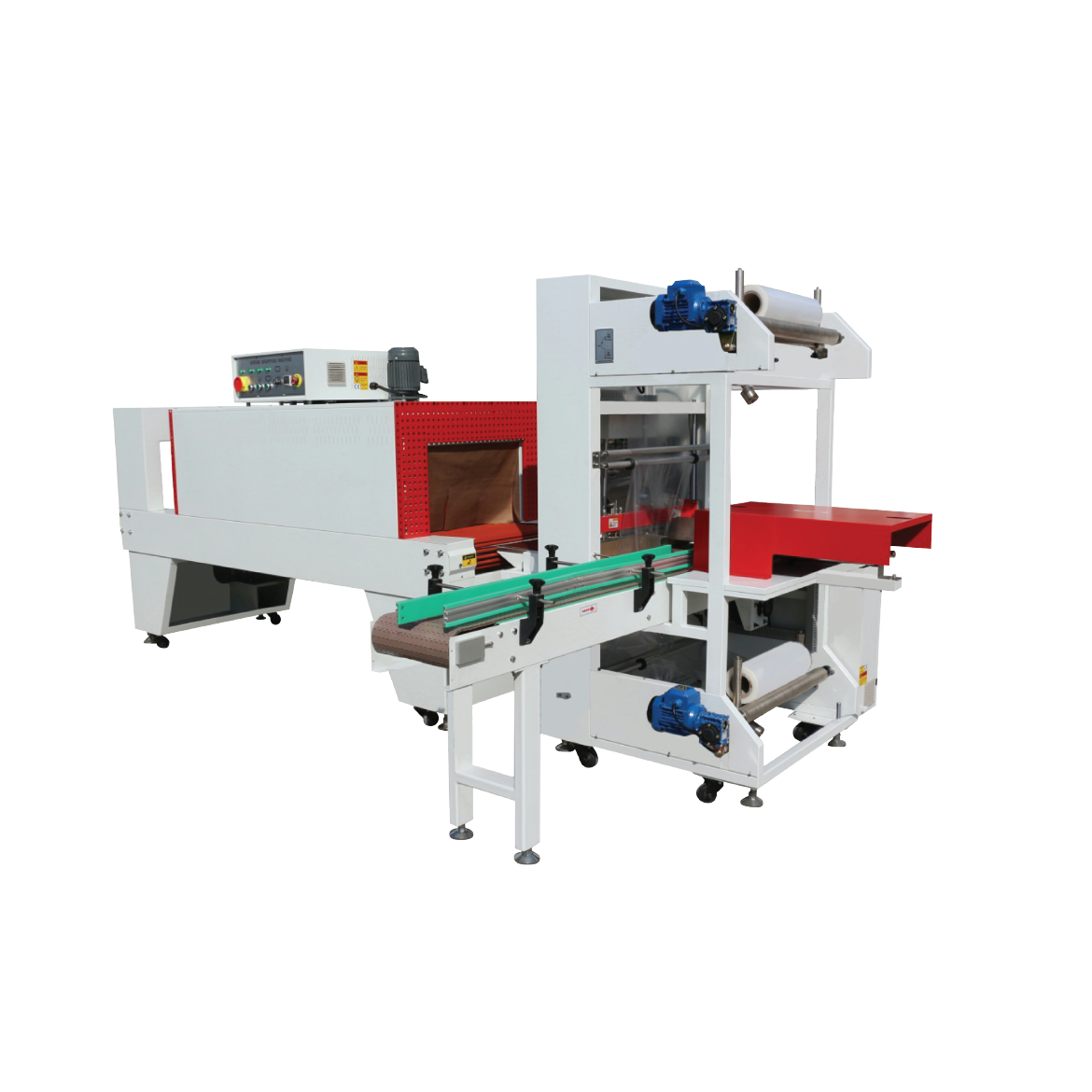

Fully-auto Sleeve Sealer &
Shrink Tunnel (Column Type)
Fully-auto Sleeve Sealer &
Shrink Tunnel (Integral Type)

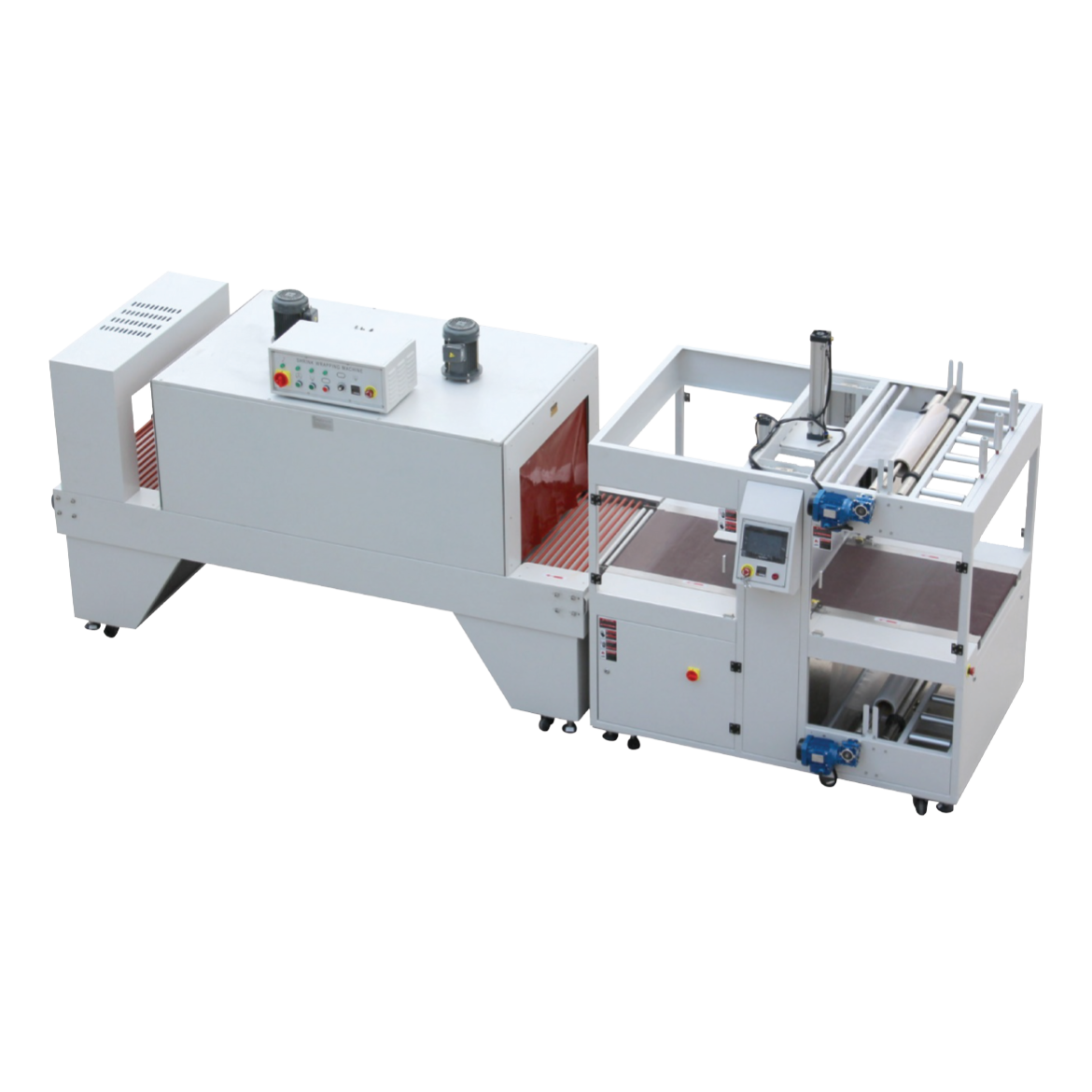

Fully Auto Straight Feeding
Sleeve Sealer and Shrink Tunnel
Semi-auto Sleeve Sealer &
Shrink Tunnel
VARIOUS TYPE OF LABELLING MACHINE
Labelling Machine

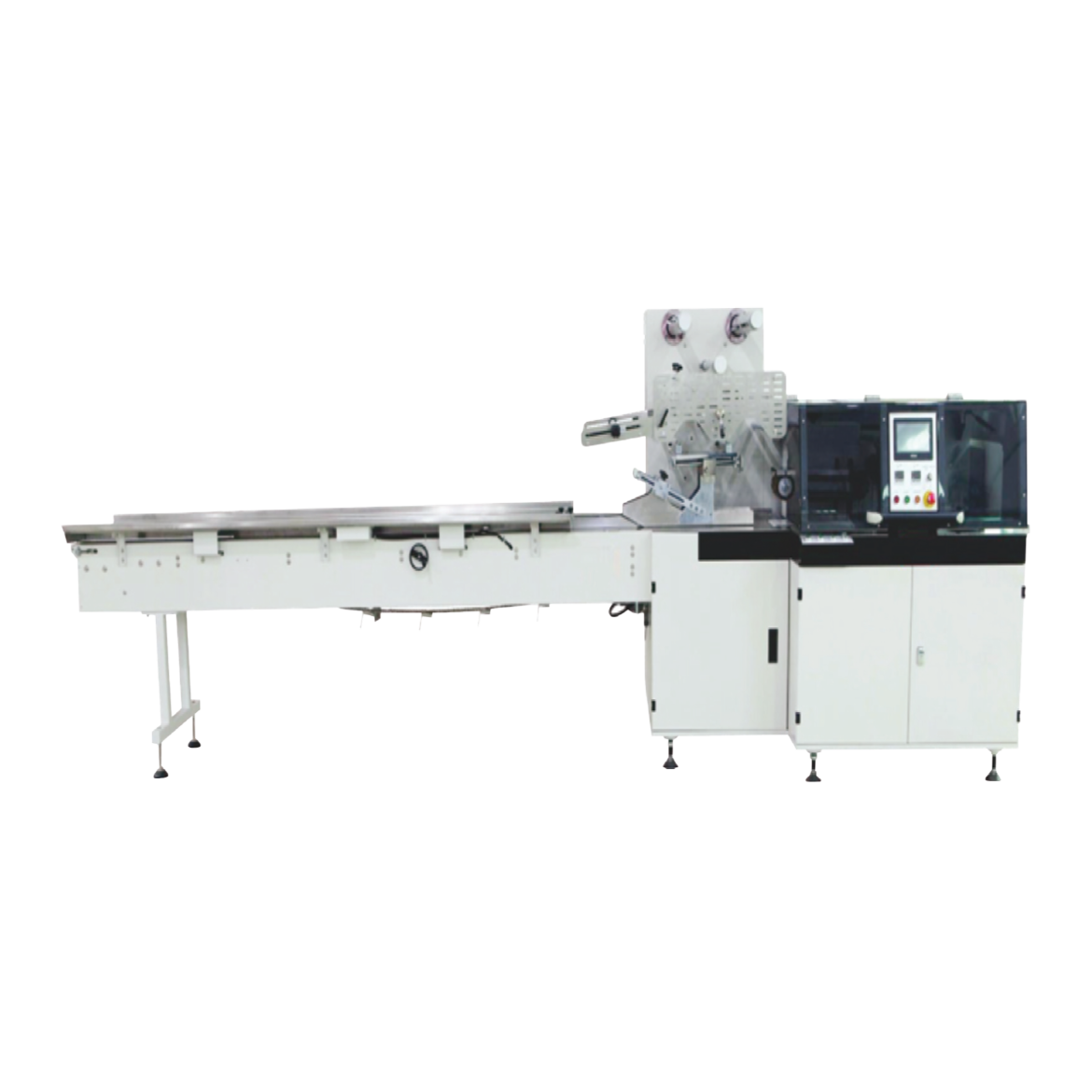

VARIOUS TYPE OF FLOW WRAPPER MACHINE
